MEXPORTER IN INDIA | ASME/ANSI B16.9, ANSI B16.28, STAINLESS STEEL LONG/SHORT PATTERN STUB ENDS/LAP JOINTS

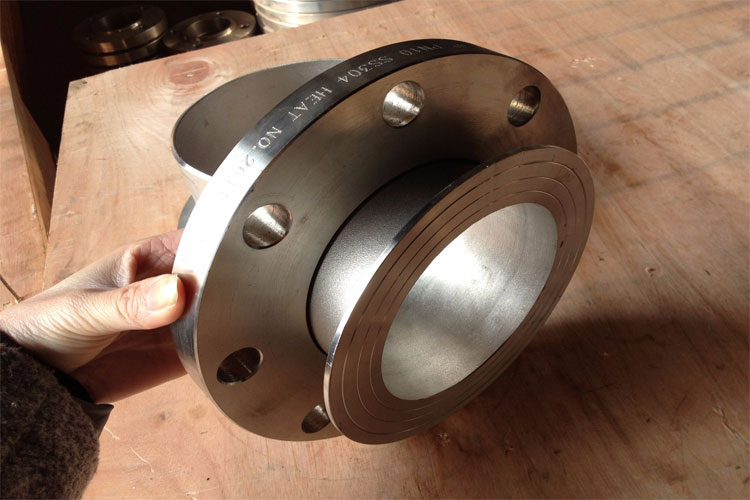

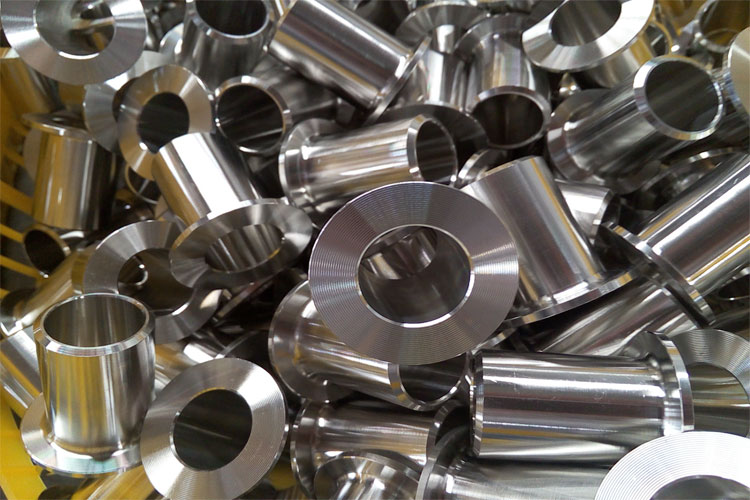

Rexon Stainless Steel is a leading India exporter and supplier of high quality, high performance stub end (lap joint) fittings in all major grades and dimensions. Stub ends can be supplied in standard and non-standard ANSI dimensions. Rexon Stainless Steel offers ex-stock supply of stainless steel stub ends and nickel alloy stub ends. Special length stub ends or lap joints can also be offered on demand.

Stub End/Lap Joint Production Range

Outside Diameter:	1/2″ – 24″
Types	Long/Short Stub Ends
Wall Thickness:	3mm-40mm / SCH55, SCH10, SCH20, SCH30, SCH40, STD, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services:	Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades:	Stainless Steel, Nickel Alloys

Standards

ASME:	ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN:	DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN:	EN10253-1, EN10253-2

ASTM A403 – ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Pipe Fittings
ASME B16.9	Factory-Made Wrought Fittings
ASME B16.28	Wrought Steel Short Radius Elbows and Returns
MSS SP-43	Wrought and Fabricated Pipe Fittings for Low Pressure, Corrosion Resistant Applications

Material Grades

Stainless Steel Elbow	ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Nickel Alloy Elbow	ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Test Certificates:

Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
